OASIS T1

OASIS T1 76

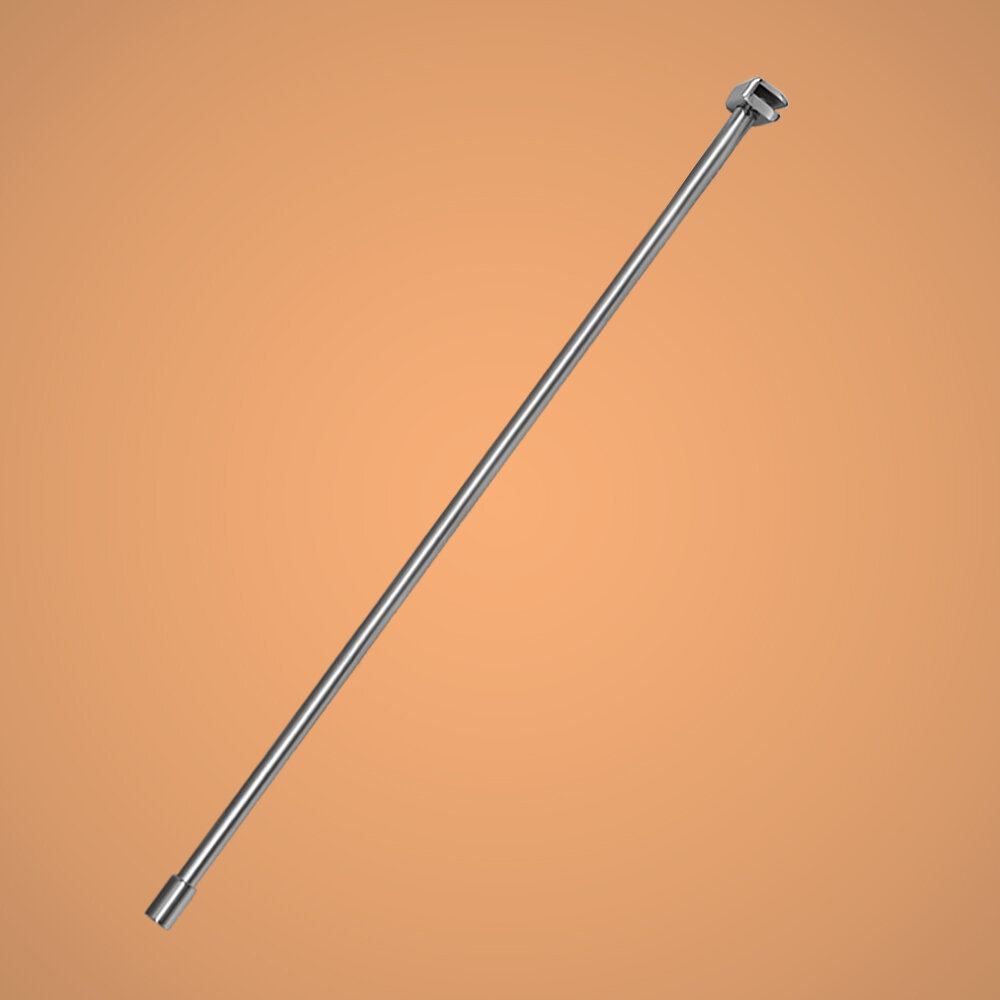

Chrome straight rounded console

Add-on for OASIS fixed-glass system.

Názov
color
dimension (cm)
expansion (cm)
Price
OASIST1CH76
OASIS T1 76
color:
chrome
dimension (cm):
76
expansion (cm):
74,5 - 76
Price with tax /

59,40
OASIST1CH83
OASIS T1 83
color:
chrome
dimension (cm):
83
expansion (cm):
81,5 - 83
Price with tax /

62,50
OASIST1CH94
OASIS T1 94
color:
chrome
dimension (cm):
94
expansion (cm):
92,5 - 94
Price with tax /

64,70

Add-on for OASIS fixed-glass system.

Description

  • Material: SS 304 steel
  • Finish: Chrome
  • Expansion(mounting dimension of the console from glass to wall):
    T1 76 =    min. 74,5  - max. 76 cm
    T1 83 =    min. 81,5  - max. 83 cm
    T1 94 =    min. 92,5  - max. 94 cm
  • Total length of the bracket when expanded:
    T1 76 =    min. 75  - max. 76 cm
    T1 83 =    min. 82  - max. 83 cm
    T1 94 =    min. 93  - max. 94 cm

  • For glass thickness: 6 - 8 mm
  • Filling: GlassAnchoring: Glass / Wall

For download

Technical drawing

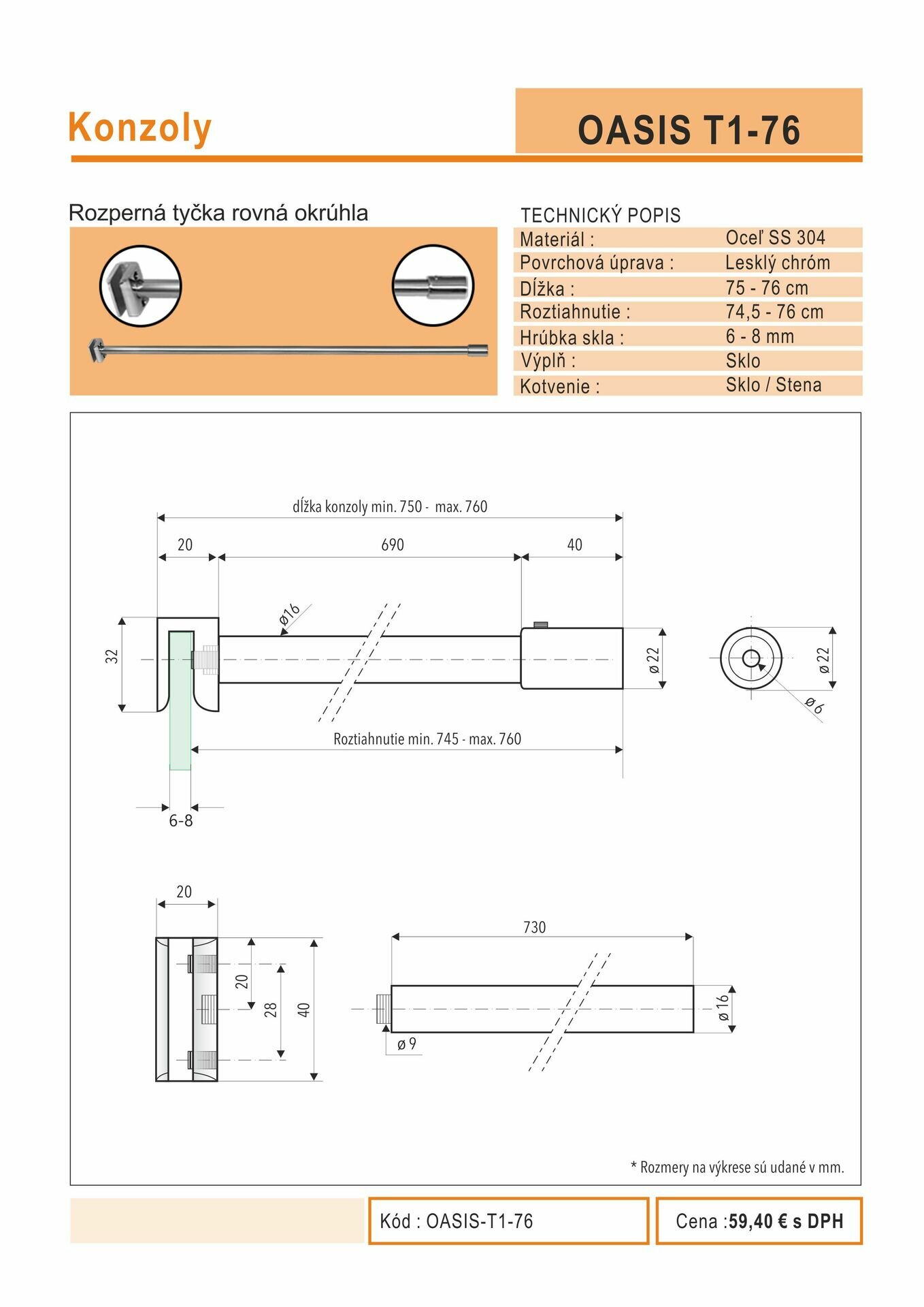

T1 76 T1 76

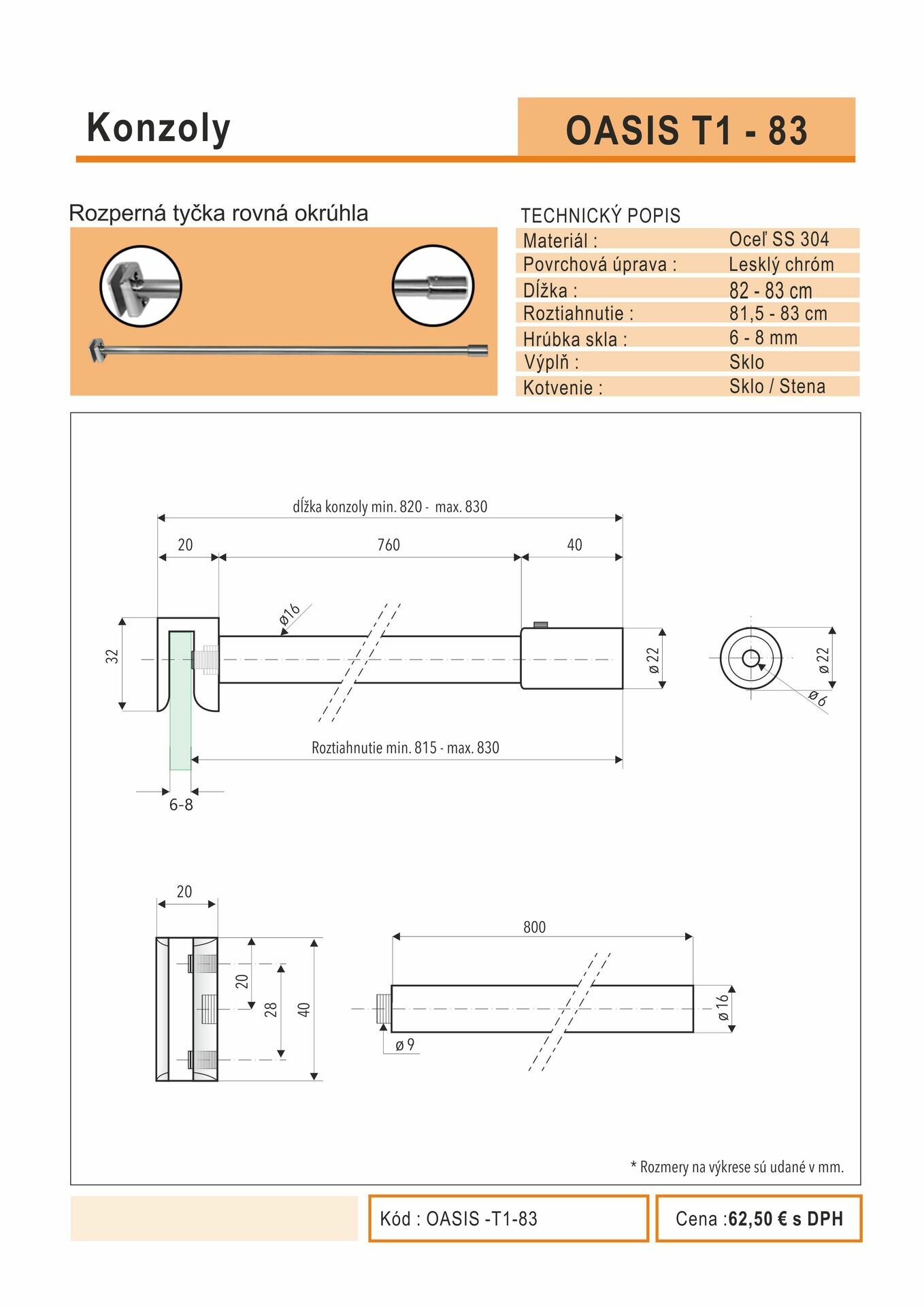

T1 83 T1 83

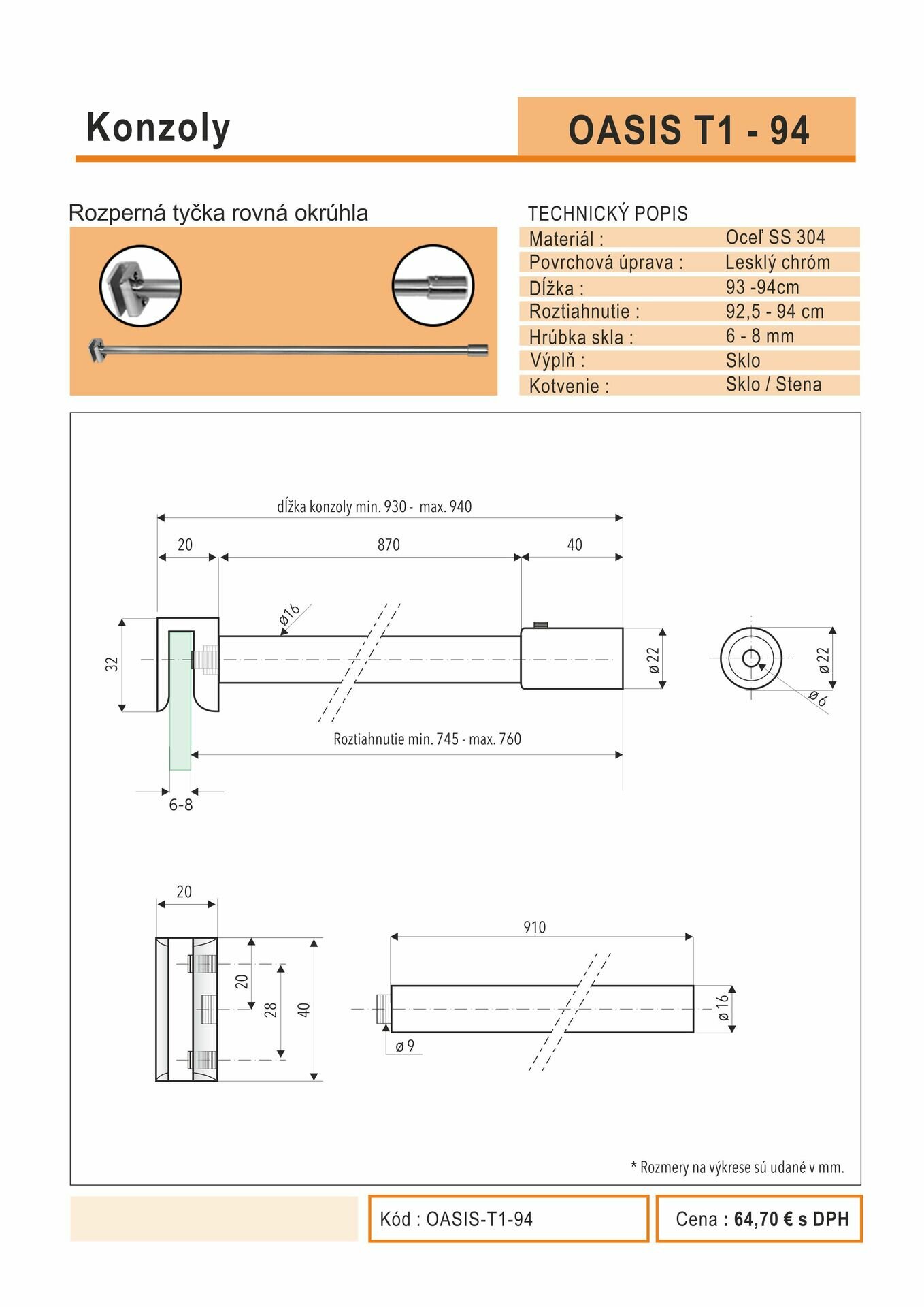

T1 94 T1 94

Assembly instructions

T1 76,83, 94 T1 76,83, 94
