OASIS T3 80

OASIS T3 80

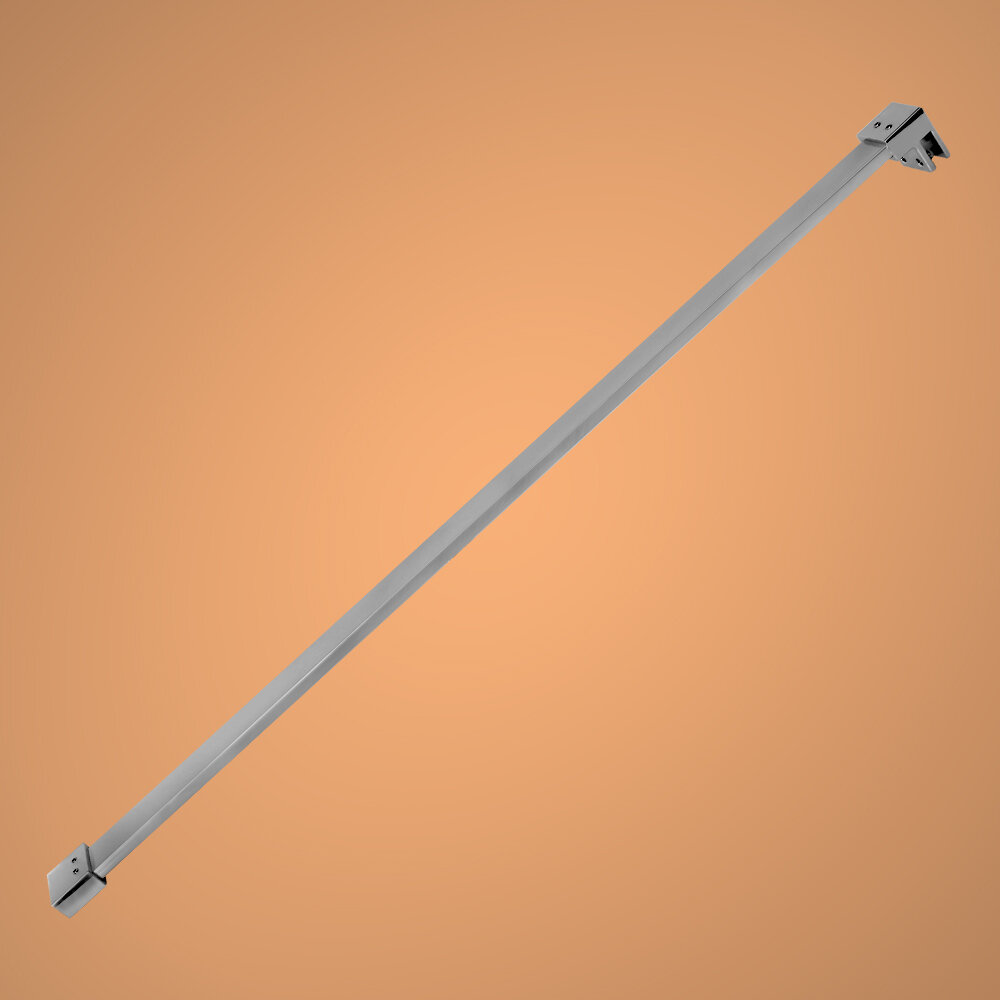

Chrome straight square console

Názov
color
dimension (cm)
expansion (cm)
Price
OASIST3CH80
OASIS T3 80
color:
chrome
dimension (cm):
80
expansion (cm):
77,5 - 81
Price with tax /

53
OASIST3CH90
OASIS T3 90
color:
chrome
dimension (cm):
90
expansion (cm):
87,5 - 91
Price with tax /

61,50
OASIST3CH100
OASIS T3 100
color:
chrome
dimension (cm):
100
expansion (cm):
97,5 - 101
Price with tax /

68,90
OASIST3CH120
OASIS T3 120
color:
chrome
dimension (cm):
120
expansion (cm):
117,5 - 121
Price with tax /

78,40

Add-on for OASIS fixed-glass system.

Description

  • Material: SS 304 steel
  • Finish: Chrome
  • Expansion(mounting dimension of the console from glass to wall):
    T3  80  =    min. 77,5   - max.   81 cm
    T3  90  =    min. 87,5   - max.   91 cm
    T3 100 =    min. 97,5   - max. 101 cm
    T3 120 =    min.117,5  - max. 121 cm
  • Total length of the bracket when expanded:
    T3  80  =    min.    79   - max.   82,5 cm
    T3  90  =    min.    89   - max.   92,5 cm
    T3 100 =    min.    99   - max. 102,5 cm
    T3 120 =    min.117,5  - max. 122,5 cm

  • For glass thickness: 6 - 8 mm
  • Filling: GlassAnchoring: Glass / Wall

For download

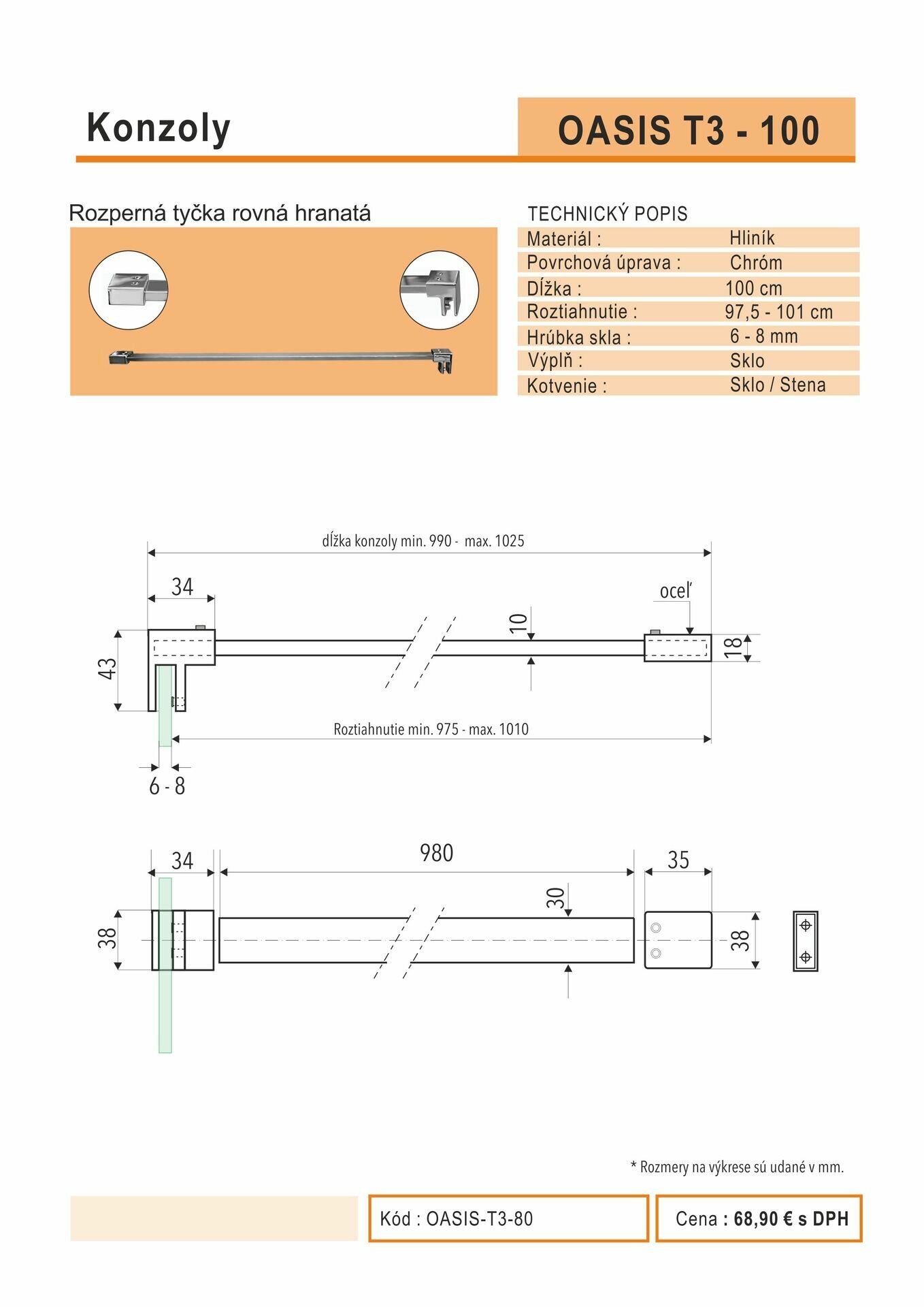

Technical drawing

T3 80 T3 80
T3 90 T3 90
T3 100 T3 100
T3 120 T3 120

Assembly instructions

T3 80, 90, 100, 120 T3 80, 90, 100, 120
