Shower enclosure FAMILY R23 120x80

FAMILY R23 120x80

Shower enclosure rectangular with one sliding door

Shower enclosures FAMILY R23 Series with one sliding door was prepared as an economical choice with high focus on quality. Magnetic closing. High-quality system of sliding the door by means of double wheels. Levelling side profile with 1,5 cm expansion. Tempered glass 6 mm thick in version grape or clear with the height 190 cm. Tilting of the bottom part of the door for a better maintenance.

Attention! When choosing a shower enclosure, the installation dimensions are very important, a so-called expansion of profiles, which can be found in the table. Expansion determines minimal and maximal dimension of the shower enclosure.

Názov
glass
color
height (cm)
dimension (cm)
expansion (cm)
input (cm)
Price
FAMILYR23CH120X8060
FAMILY R23 120x80
glass:
grapé
color:
chrome
height (cm):
190
dimension (cm):
120x80
expansion (cm):
118-119,5x78-79,5
input (cm):
49
Price with tax /

635
FAMILYR33CH120X9060
FAMILY R33 120x90
glass:
grapé
color:
chrome
height (cm):
190
dimension (cm):
120x90
expansion (cm):
118-119,5x88-89,5
input (cm):
49
Price with tax /

654
FAMILYR23CH120X8062
FAMILY R23 120x80
glass:
clear
color:
chrome
height (cm):
190
dimension (cm):
120x80
expansion (cm):
118-119,5x78-79,5
input (cm):
49
Price with tax /

635
FAMILYR33CH120X9062
FAMILY R33 120x90
glass:
clear
color:
chrome
height (cm):
190
dimension (cm):
120x90
expansion (cm):
118-119,5x88-89,5
input (cm):
49
Price with tax /

654

Shower enclosures rectangular with one sliding door was prepared as an economical choice with high focus on quality.

Description

  • Clear or Grape tempered glass with thickness 6 mm
  • Leveling side profile with 1,5 cm expansion
  • Total height 190 cm
  • Chrome colour of metal parts

Other features

  • Magnetic closing
  • One sliding door
  • Double wheels with bearings on the sliding door
  • Frame for sliding doors

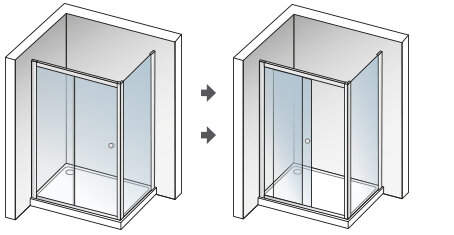

  • The tilting bottom part of the door

Model

  • universal

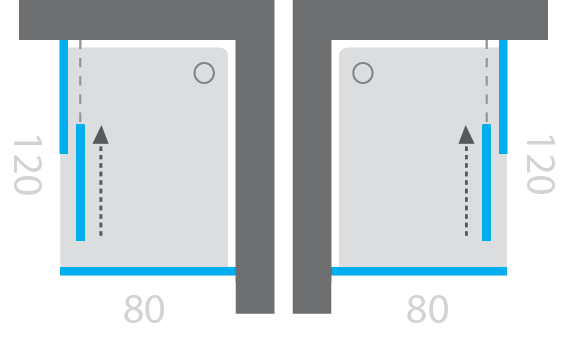

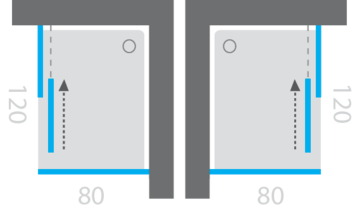

Opening

Warning!

Aquatek shower enclosures are supplied without a shower tray and can be mounted directly on the floor without a shower tray. To use with the shower tray, the shower tray must be purchased separately. Suitable trays and other accessories can be found under the related products tab.
