Shower enclosure FAMILY R4 90x70

FAMILY R4 90x70

Shower enclosure rectangular with two sliding doors

Shower enclosures FAMILY R4 Series with two sliding doors was prepared as an economical choice with high focus on quality. Magnetic closing. High-quality system of sliding the door by means of double wheels. Levelling side profile with 1,5 cm expansion. Tempered glass 6 mm thick in version grape or clear with the height 190 cm. Tilting of the bottom part of the door for a better maintenance.

Attention! When choosing a shower enclosure, the installation dimensions are very important, a so-called expansion of profiles, which can be found in the table. Expansion determines minimal and maximal dimension of the shower enclosure.

Názov
glass
height (cm)
dimension (cm)
expansion (cm)
input (cm)
color
Price
FAMILYR4CH90X7060
FAMILY R4 90x70
glass:
grapé
height (cm):
190
dimension (cm):
90x70
expansion (cm):
88-89,5x68-69,5
input (cm):
47
color:
Price with tax /

536
FAMILYR14CH100X8060
FAMILY R14 100x80
glass:
grapé
height (cm):
190
dimension (cm):
100x80
expansion (cm):
98-99,5x78-79,5
input (cm):
49
color:
Price with tax /

595
FAMILYR4CH90X7062
FAMILY R4 90x70
glass:
clear
height (cm):
190
dimension (cm):
90x70
expansion (cm):
88-89,5x68-69,5
input (cm):
47
color:
chrome
Price with tax /

536
FAMILYR14CH100X8062
FAMILY R14 100x80
glass:
clear
height (cm):
190
dimension (cm):
100x80
expansion (cm):
98-99,5x78-79,5
input (cm):
49
color:
chrome
Price with tax /

595

Shower enclosures rectangular with two sliding doors was prepared as an economical choice with high focus on quality.

Description

  • Clear or Grape tempered glass with thickness 6 mm
  • Leveling side profile with 1,5 cm expansion
  • Total height 190 cm
  • Chrome colour of metal parts

Other features

  • Magnetic closing
  • Two sliding doors

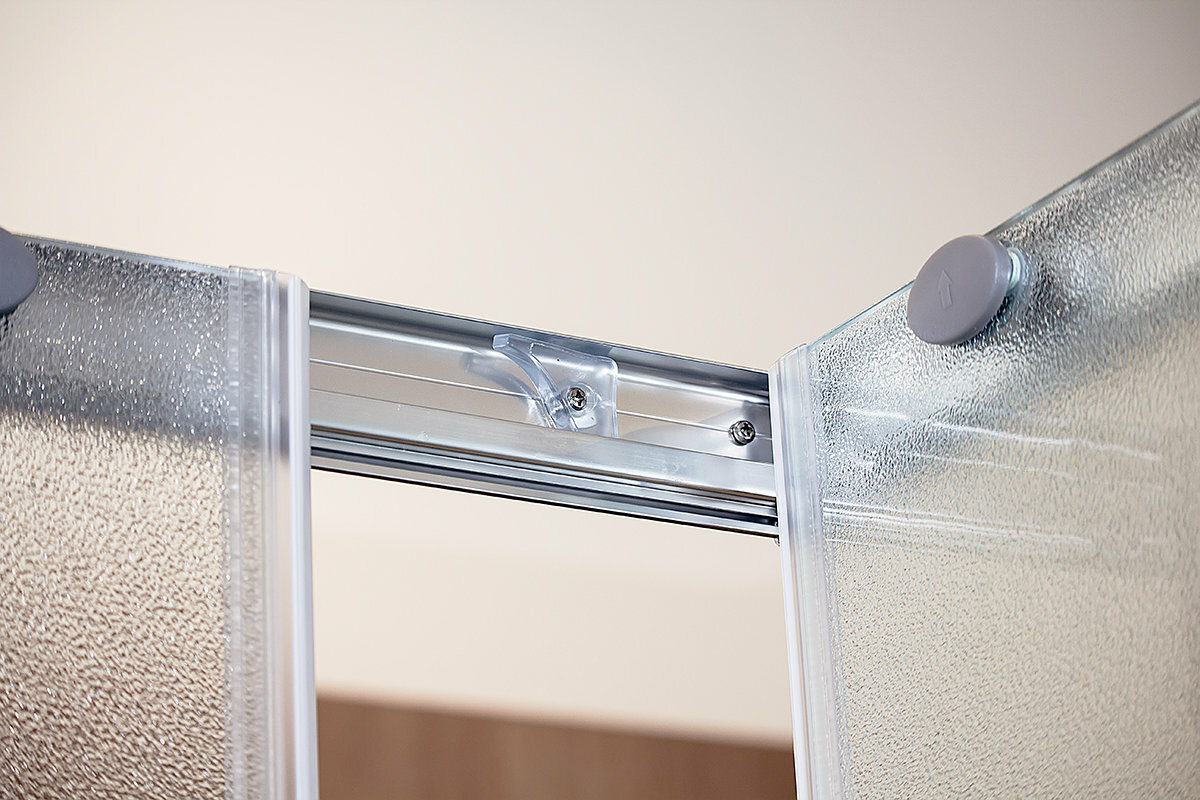

  • Double wheels with bearings on the sliding door
  • Frame for sliding doors

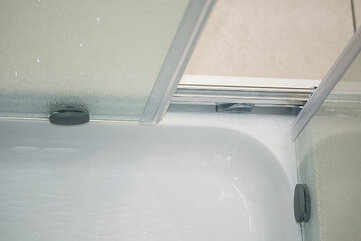

  • The tilting bottom part of the door

Model

  • universal

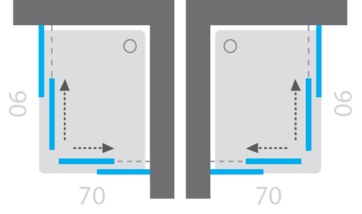

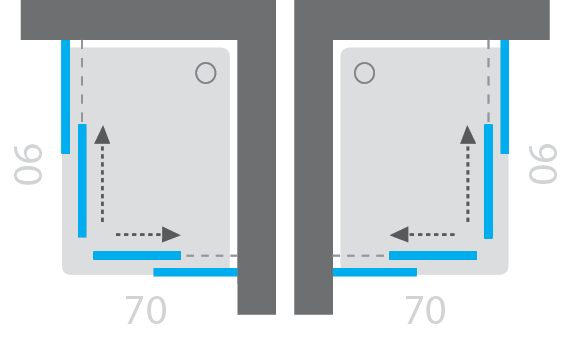

Opening

Warning!

Aquatek shower enclosures are supplied without a shower tray and can be mounted directly on the floor without a shower tray. To use with the shower tray, the shower tray must be purchased separately. Suitable trays and other accessories can be found under the related products tab.
