LUX B1 60

LUX B1 60

Opening front door

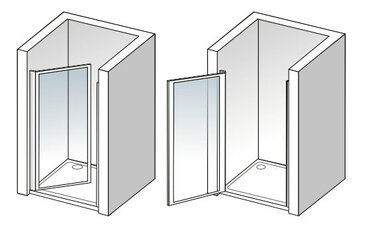

LUX B1 opening front door with one hinged opening door. All models are made in a plastic filling - a pattern of flowing water with a thickness of 2.2 mm or 4 mm tempered glass grappe, which is framed by white aluminum profiles. Said series is characterized by opening by means of hinges placed in vertical profiles. The door is mounted as close as possible to the inner edge of the bath, tray or wall, as it has no lower guide profile and tightness is ensured only thanks to the rubber seal on the underside of the door. Height 185 cm. Compensating side profile with up to 2.5 cm extension and magnetic closure. Easy installation and low maintenance.

Warning! When choosing a shower enclosure, the so-called installation dimension is very important. stretch the profiles, which you will find in the table. The expansion determines the minimum and maximum dimensions of the shower enclosure.

Názov
glass
profile color
height (cm)
dimension (cm)
expansion (cm)
input (cm)
Price
LUXB1BI6017
LUX B1 60
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
60
expansion (cm):
56-61
input (cm):
43
Price with tax /

233
LUXB1BI6060
LUX B1 60
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
60
expansion (cm):
56-61
input (cm):
43
Price with tax /

268
LUXB1BI6517
LUX B1 65
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
65
expansion (cm):
61-66
input (cm):
48
Price with tax /

237
LUXB1BI6560
LUX B1 65
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
65
expansion (cm):
61-66
input (cm):
48
Price with tax /

272
LUXB1BI7017
LUX B1 70
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
70
expansion (cm):
66-71
input (cm):
53
Price with tax /

242
LUXB1BI7060
LUX B1 70
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
70
expansion (cm):
66-71
input (cm):
53
Price with tax /

277
LUXB1BI7517
LUX B1 75
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
75
expansion (cm):
71-76
input (cm):
58
Price with tax /

246
LUXB1BI7560
LUX B1 75
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
75
expansion (cm):
71-76
input (cm):
58
Price with tax /

281
LUXB1BI8017
LUX B1 80
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
80
expansion (cm):
76-81
input (cm):
63
Price with tax /

251
LUXB1BI8060
LUX B1 80
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
80
expansion (cm):
76-81
input (cm):
63
Price with tax /

286
LUXB1BI8517
LUX B1 85
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
85
expansion (cm):
81-86
input (cm):
68
Price with tax /

255
LUXB1BI8560
LUX B1 85
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
85
expansion (cm):
81-86
input (cm):
68
Price with tax /

290
LUXB1BI9017
LUX B1 90
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
90
expansion (cm):
86-91
input (cm):
73
Price with tax /

260
LUXB1BI9060
LUX B1 90
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
90
expansion (cm):
86-91
input (cm):
73
Price with tax /

295

Opening front door with two opening doors on hinges.

Description

  • Plastic filling with thickness 2,2 mm
    in a design of water flowing down
  • Grape tempered glass with thickness 4 mm
  • Leveling side profile with 2,5 cm expansion
  • Total height 185 cm
  • White colour of metal parts

Other features

  • Magnetic closing

Model

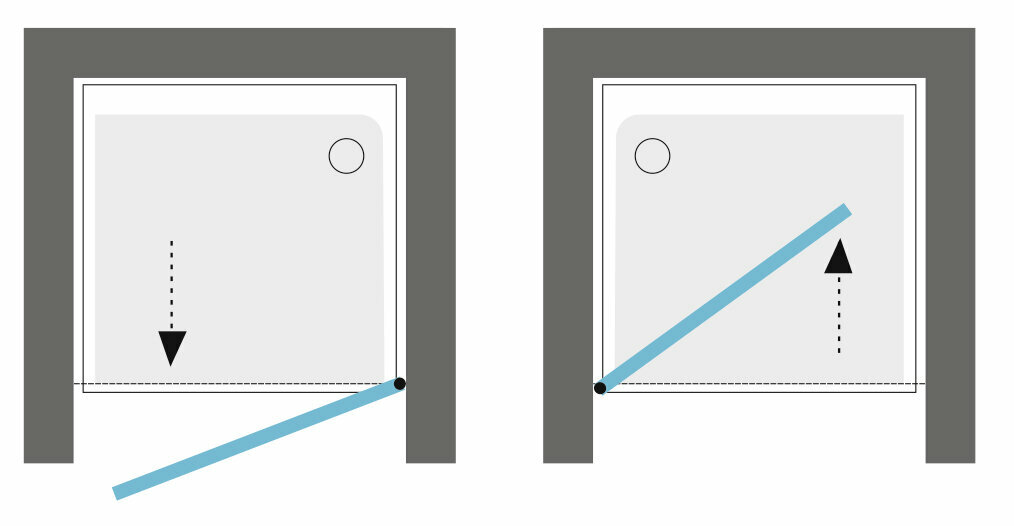

  • universal - opening out or inside

Opening

Warning!

Aquatek shower enclosures are supplied without a shower tray and can be mounted directly on the floor without a shower tray. To use with the shower tray, the shower tray must be purchased separately. Suitable trays and other accessories can be found under the related products tab.
