Opening front door LUX B2

LUX B2 60

Opening front door

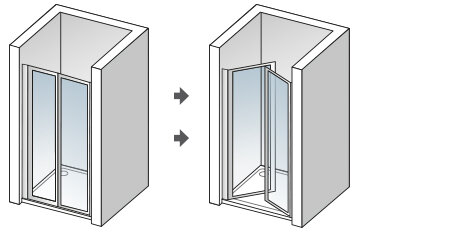

Opening front door LUX B2 with two opening doors on hinges. All models are produced with plastic filling – pattern flowing-down water with the thickness 2,2 mm or a 4 mm thick tempered glass grape, which is framed by white colour aluminium profiles. The above-mentioned series is characterized by opening and tilting by means of hinges placed in vertical profiles. The doors are installed as close to the inner edge of the bath, shower tray or wall as possible, because they do not have any bottom guiding profile and the tightness is ensured only thanks to rubber sealing on the bottom edge of the doors. Standard height 185 cm, levelling side profile with up to 2,5 cm expansion and magnetic closing. Simple installation and easy maintenance.

Attention! When choosing a shower enclosure, the installation dimensions are very important, a so-called expansion of profiles, which can be found in the table. Expansion determines minimal and maximal dimension of the shower enclosure.

Názov
glass
profile color
height (cm)
dimension (cm)
expansion (cm)
input (cm)
Price
LUXB2BI6060
LUX B2 60
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
60
expansion (cm):
56-61
input (cm):
43
Price with tax /

293
LUXB2BI6017
LUX B2 60
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
60
expansion (cm):
56-61
input (cm):
43
Price with tax /

262
LUXB2BI6560
LUX B2 65
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
65
expansion (cm):
61-66
input (cm):
48
Price with tax /

298
LUXB2BI6517
LUX B2 65
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
65
expansion (cm):
61-66
input (cm):
48
Price with tax /

267
LUXB2BI7060
LUX B2 70
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
70
expansion (cm):
66-71
input (cm):
53
Price with tax /

302
LUXB2BI7017
LUX B2 70
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
70
expansion (cm):
66-71
input (cm):
53
Price with tax /

272
LUXB2BI7560
LUX B2 75
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
75
expansion (cm):
71-76
input (cm):
58
Price with tax /

307
LUXB2BI7517
LUX B2 75
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
75
expansion (cm):
71-76
input (cm):
58
Price with tax /

277
LUXB2BI8060
LUX B2 80
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
80
expansion (cm):
76-81
input (cm):
63
Price with tax /

311
LUXB2BI8017
LUX B2 80
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
80
expansion (cm):
76-81
input (cm):
63
Price with tax /

282
LUXB2BI8560
LUX B2 85
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
85
expansion (cm):
81-86
input (cm):
68
Price with tax /

316
LUXB2BI8517
LUX B2 85
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
85
expansion (cm):
81-86
input (cm):
68
Price with tax /

287
LUXB2BI9060
LUX B2 90
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
90
expansion (cm):
86-91
input (cm):
73
Price with tax /

320
LUXB2BI9017
LUX B2 90
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
90
expansion (cm):
86-91
input (cm):
73
Price with tax /

292
LUXB2BI9560
LUX B2 95
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
95
expansion (cm):
91-96
input (cm):
78
Price with tax /

325
LUXB2BI9517
LUX B2 95
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
95
expansion (cm):
91-96
input (cm):
78
Price with tax /

297
LUXB2BI10060
LUX B2 100
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
100
expansion (cm):
96-101
input (cm):
83
Price with tax /

329
LUXB2BI10017
LUX B2 100
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
100
expansion (cm):
96-101
input (cm):
83
Price with tax /

302

Opening front door with two opening doors on hinges.

Description

  • Plastic filling with thickness 2,2 mm
    in a design of water flowing down
  • Grape tempered glass with thickness 4 mm
  • Leveling side profile with 2,5 cm expansion
  • Total height 185 cm
  • White colour of metal parts

Other features

  • Magnetic closing

Model

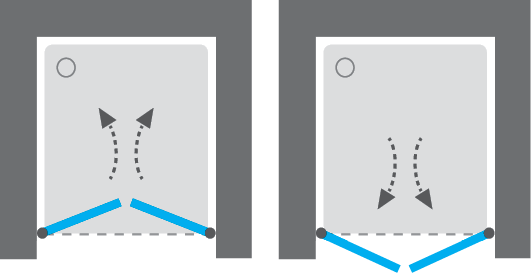

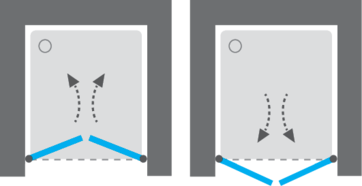

  • universal - opening out or inside

Opening

Warning!

Aquatek shower enclosures are supplied without a shower tray and can be mounted directly on the floor without a shower tray. To use with the shower tray, the shower tray must be purchased separately. Suitable trays and other accessories can be found under the related products tab.
