Folding front door

Folding front door LUX B6. All models are produced with plastic filling – pattern flowing-down water with the thickness 2,2 mm or a 4 mm thick tempered glass grape, which is framed by white colour aluminium profiles. The above-mentioned series is characterized by opening and folding by means of hinges placed in vertical profiles. The doors are installed as close to the inner edge of the bath, shower tray or wall as possible, because they do not have any bottom guiding profile and the tightness is ensured only thanks to rubber sealing on the bottom edge of the doors. Standard height 185 cm, levelling side profile with up to 2,5 cm expansion and magnetic closing. Simple installation and easy maintenance.

Attention! When choosing a shower enclosure, the installation dimensions are very important, a so-called expansion of profiles, which can be found in the table. Expansion determines minimal and maximal dimension of the shower enclosure.

Názov
glass
profile color
height (cm)
dimension (cm)
expansion (cm)
input (cm)
Price
LUXB6BI6060
LUX B6 60
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
60
expansion (cm):
56-61
input (cm):
44
Price with tax /

287
LUXB6BI6017
LUX B6 60
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
60
expansion (cm):
56-61
input (cm):
44
Price with tax /

256
LUXB6BI6560
LUX B6 65
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
65
expansion (cm):
61-66
input (cm):
49
Price with tax /

291
LUXB6BI6517
LUX B6 65
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
65
expansion (cm):
61-66
input (cm):
49
Price with tax /

261
LUXB6BI7060
LUX B6 70
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
70
expansion (cm):
66-71
input (cm):
54
Price with tax /

296
LUXB6BI7017
LUX B6 70
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
70
expansion (cm):
66-71
input (cm):
54
Price with tax /

265
LUXB6BI7560
LUX B6 75
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
75
expansion (cm):
71-76
input (cm):
59
Price with tax /

300
LUXB6BI7517
LUX B6 75
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
75
expansion (cm):
71-76
input (cm):
59
Price with tax /

270
LUXB6BI8060
LUX B6 80
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
80
expansion (cm):
76-81
input (cm):
64
Price with tax /

305
LUXB6BI8017
LUX B6 80
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
80
expansion (cm):
76-81
input (cm):
64
Price with tax /

274
LUXB6BI8560
LUX B6 85
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
85
expansion (cm):
81-86
input (cm):
69
Price with tax /

309
LUXB6BI8517
LUX B6 85
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
85
expansion (cm):
81-86
input (cm):
69
Price with tax /

279
LUXB6BI9060
LUX B6 90
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
90
expansion (cm):
86-91
input (cm):
74
Price with tax /

314
LUXB6BI9017
LUX B6 90
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
90
expansion (cm):
86-91
input (cm):
74
Price with tax /

283
LUXB6BI9560
LUX B6 95
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
95
expansion (cm):
91-96
input (cm):
74
Price with tax /

314
LUXB6BI9517
LUX B6 95
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
95
expansion (cm):
91-96
input (cm):
79
Price with tax /

318
LUXB6BI10060
LUX B6 100
glass:
grapé
profile color:
white
height (cm):
185
dimension (cm):
100
expansion (cm):
96-101
input (cm):
84
Price with tax /

323
LUXB6BI10017
LUX B6 100
glass:
krilex
profile color:
white
height (cm):
185
dimension (cm):
100
expansion (cm):
96-101
input (cm):
84
Price with tax /

318

Folding front door.

Description

  • Plastic filling with thickness 2,2 mm
    in a design of water flowing down
  • Grape tempered glass with thickness 4 mm
  • Leveling side profile with 2,5 cm expansion
  • Total height 185 cm
  • White colour of metal parts

Other features

  • Magnetic closing

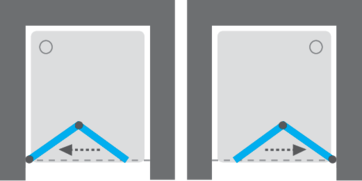

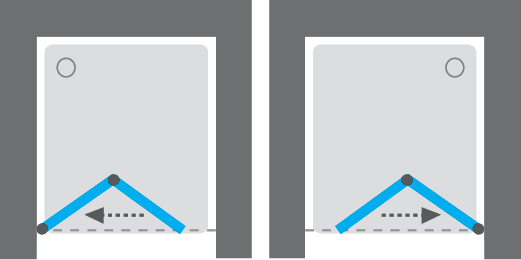

Model

  • universal - opening out or inside

Opening

Warning!

Aquatek shower enclosures are supplied without a shower tray and can be mounted directly on the floor without a shower tray. To use with the shower tray, the shower tray must be purchased separately. Suitable trays and other accessories can be found under the related products tab.
